Albyone2

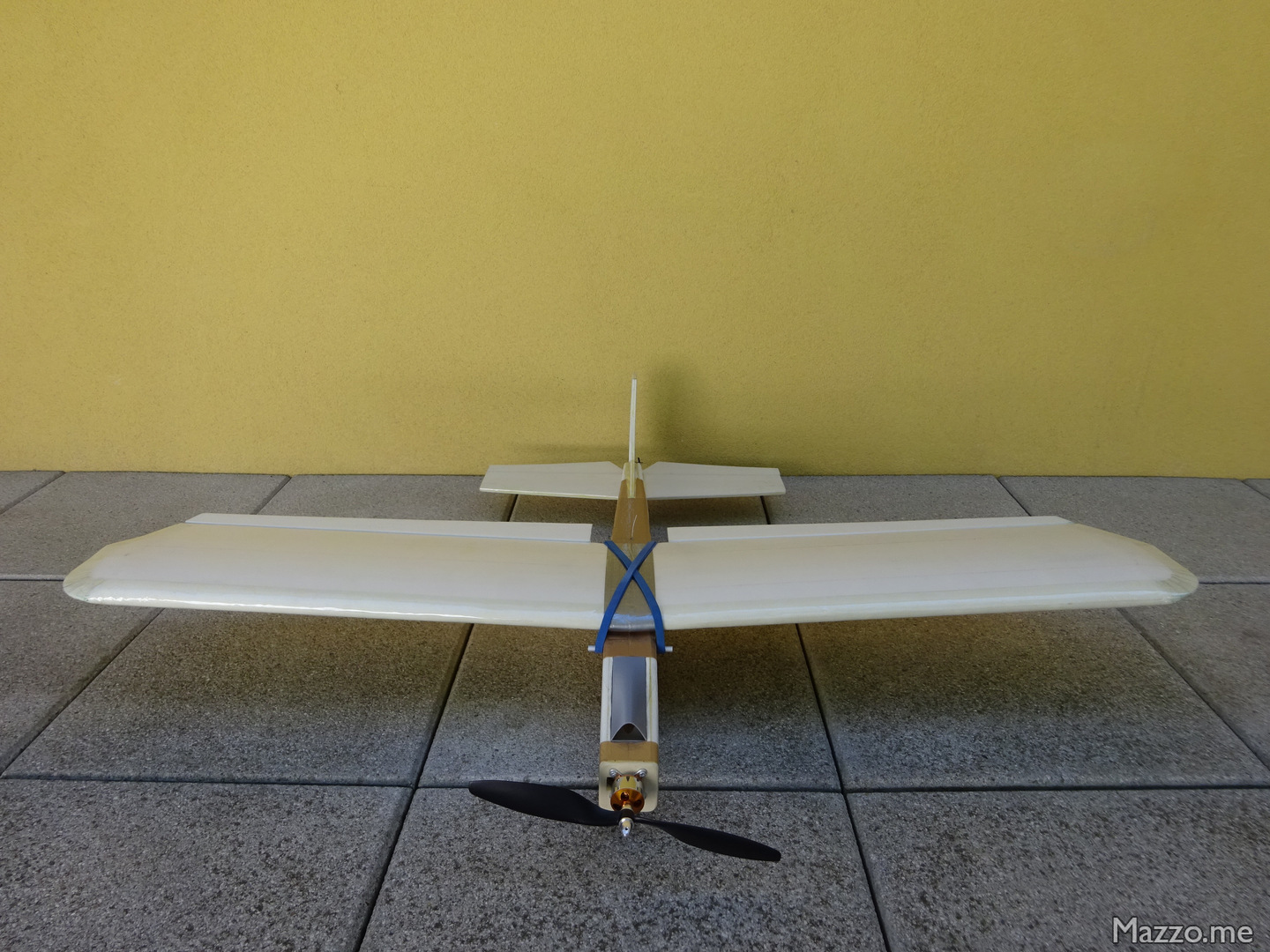

I made this radio-controlled aircraft in Depron based on the Albyone project.

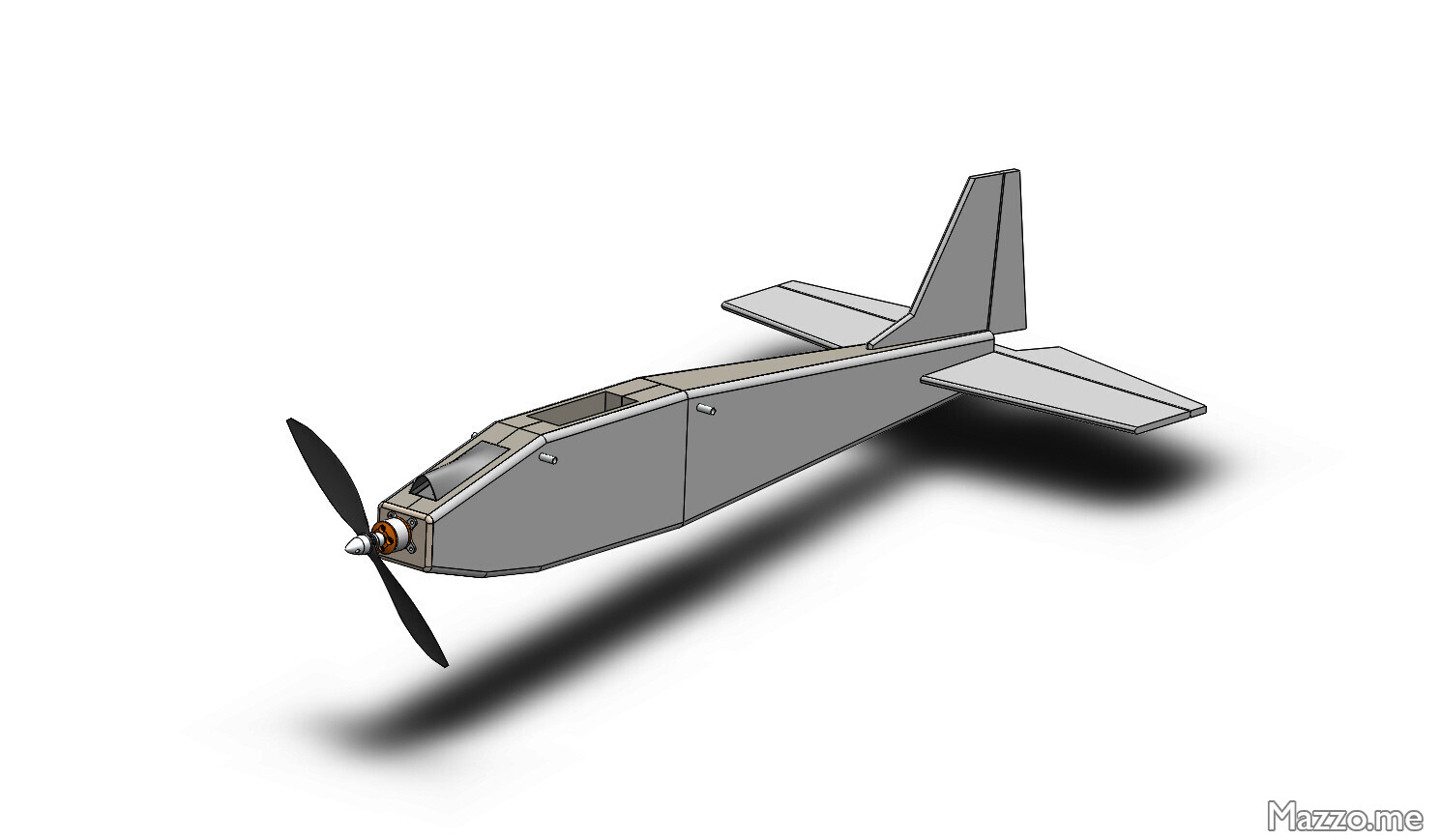

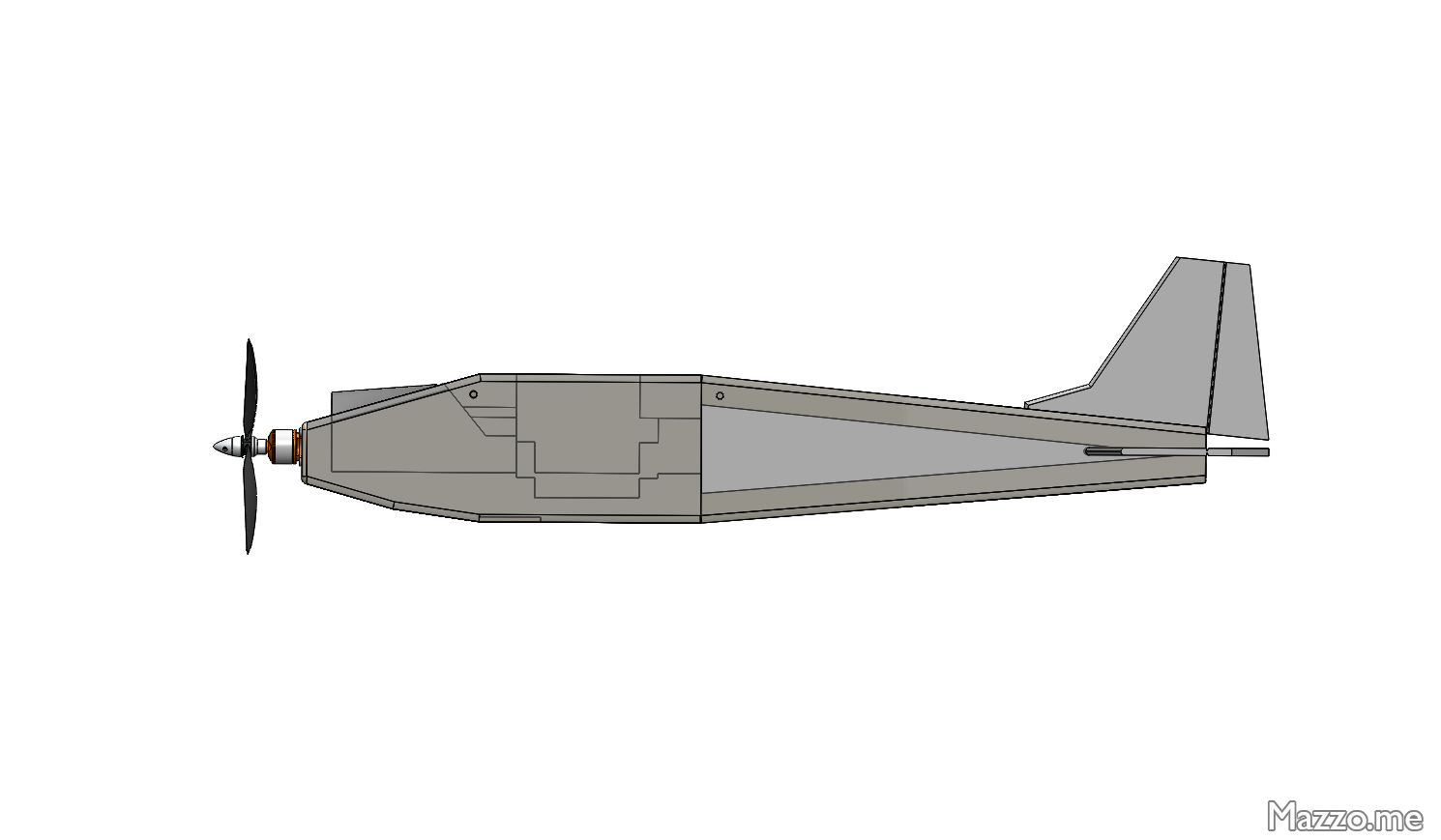

I designed the model with the CAD SolidWorks:

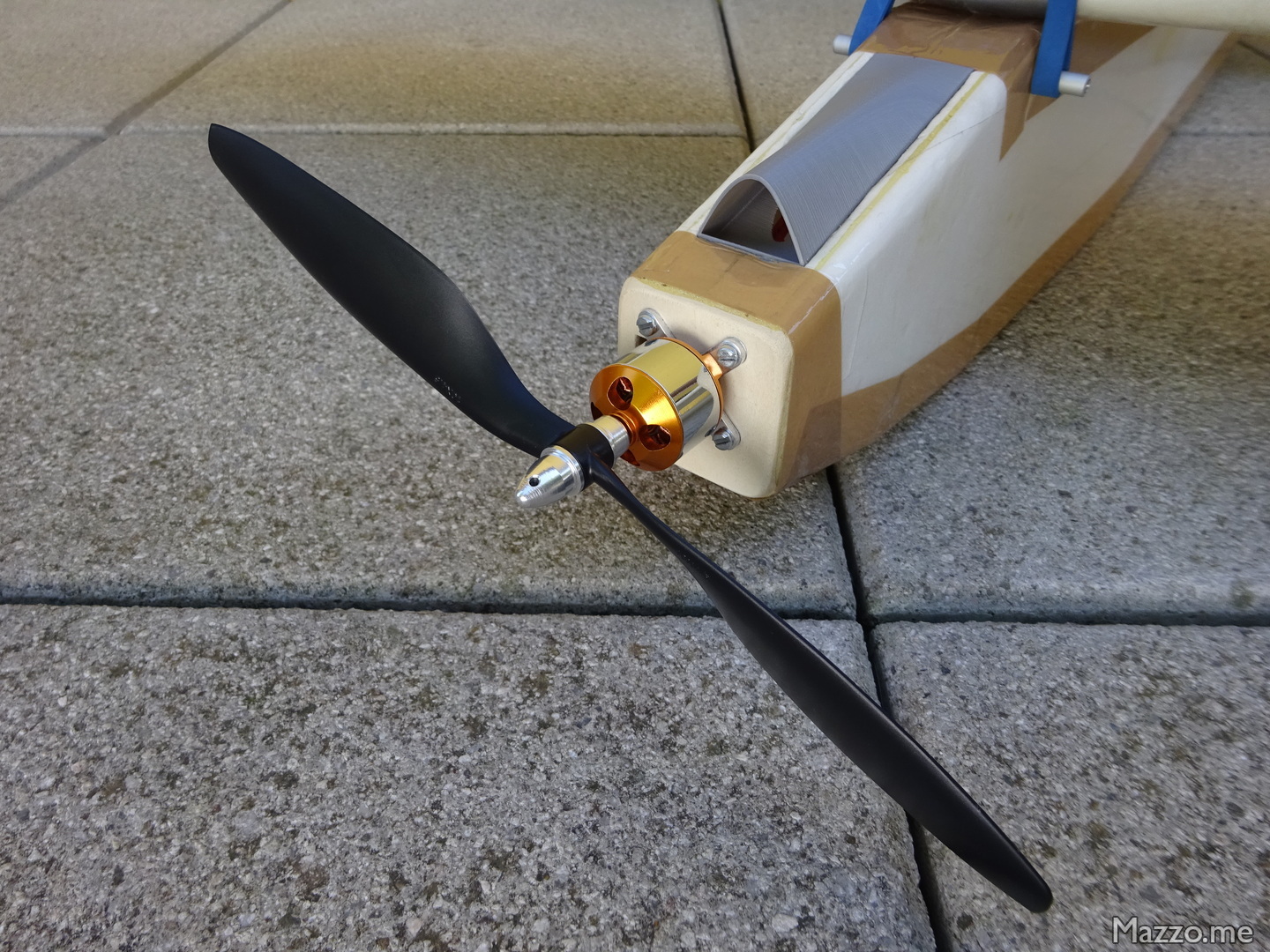

The plane mounts a brushless motor:

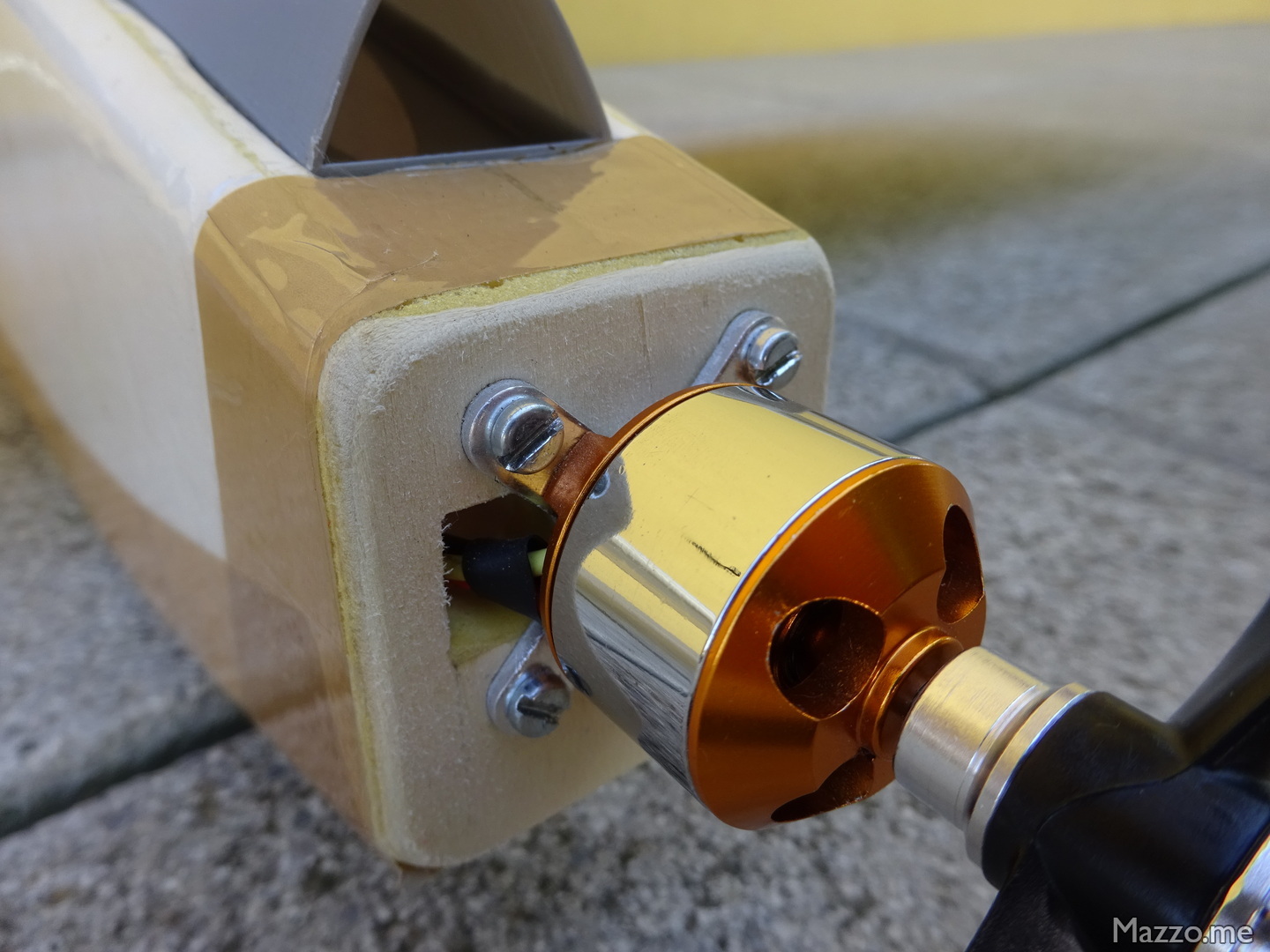

The motor support is realized with plywood:

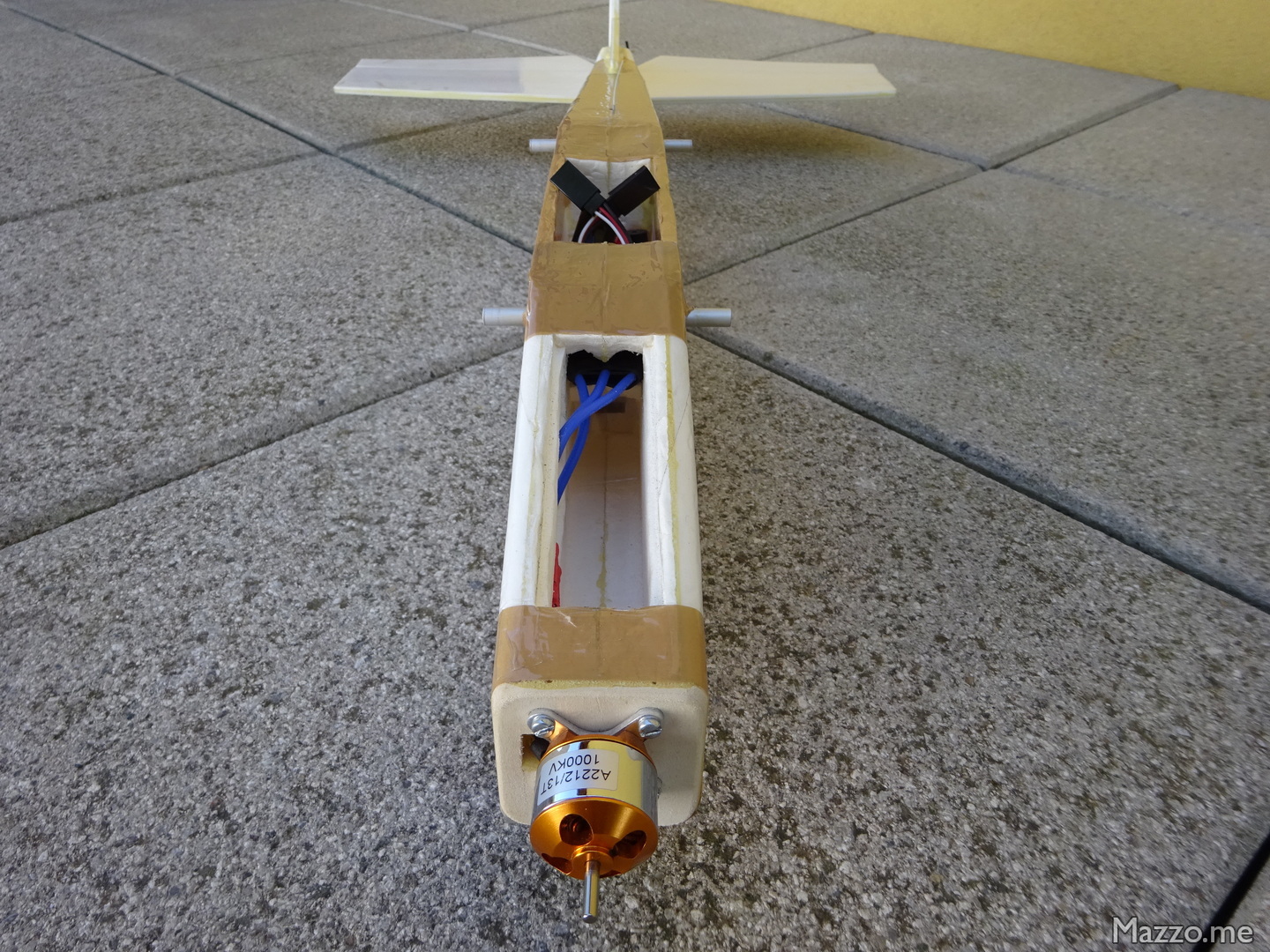

Behind the motor there is the battery compartment:

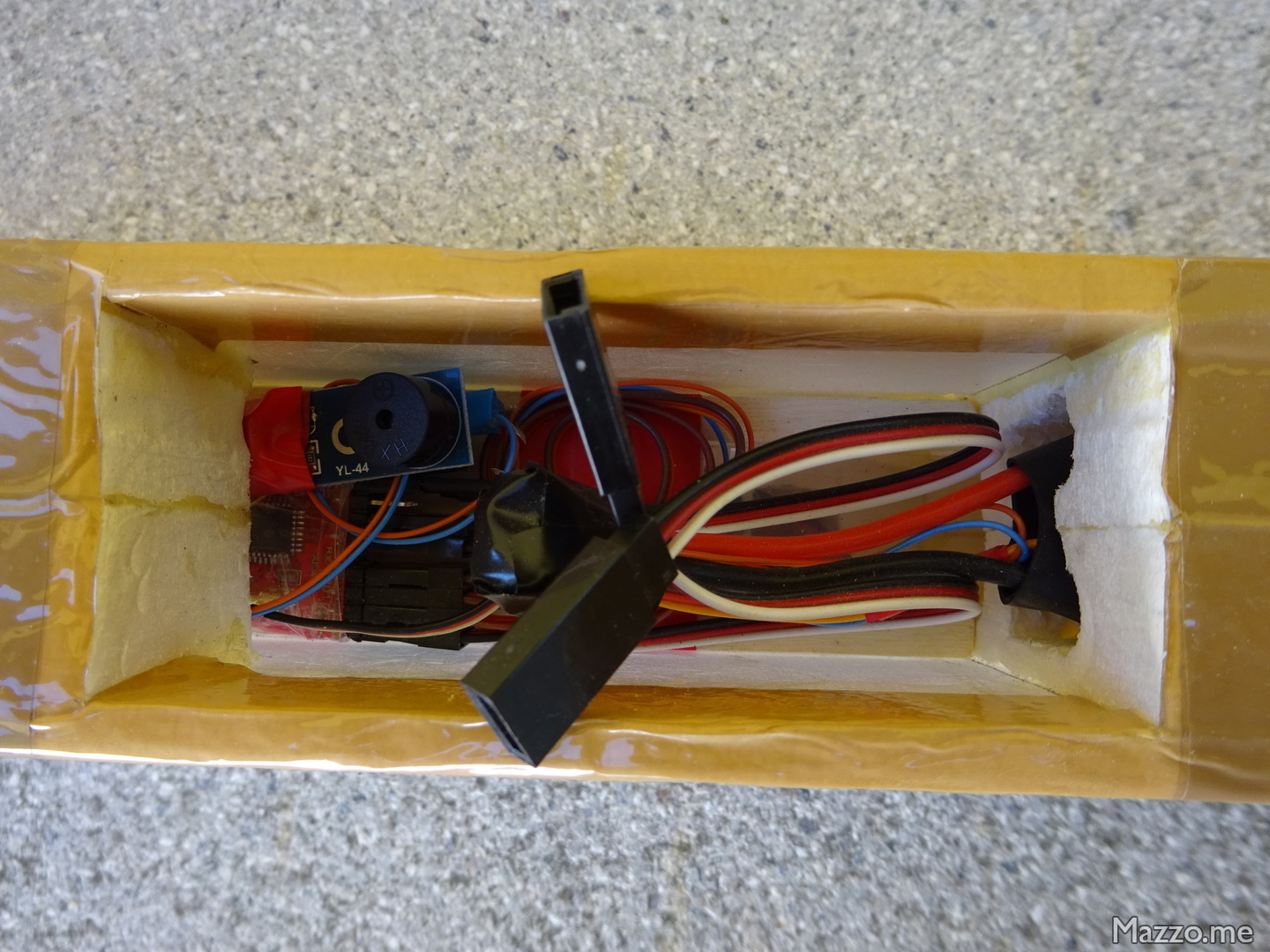

Under the wing there is the electronic compartment:

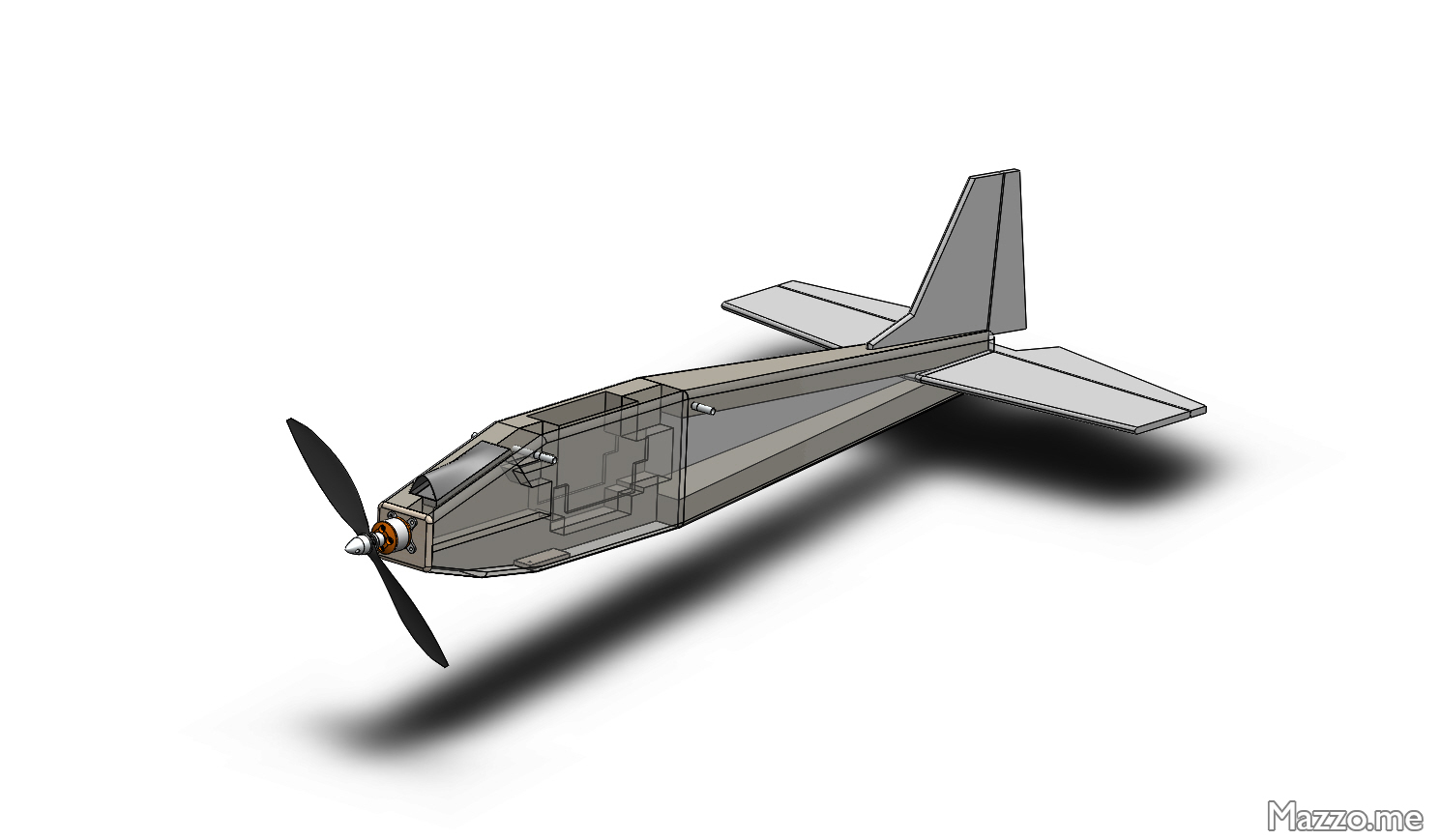

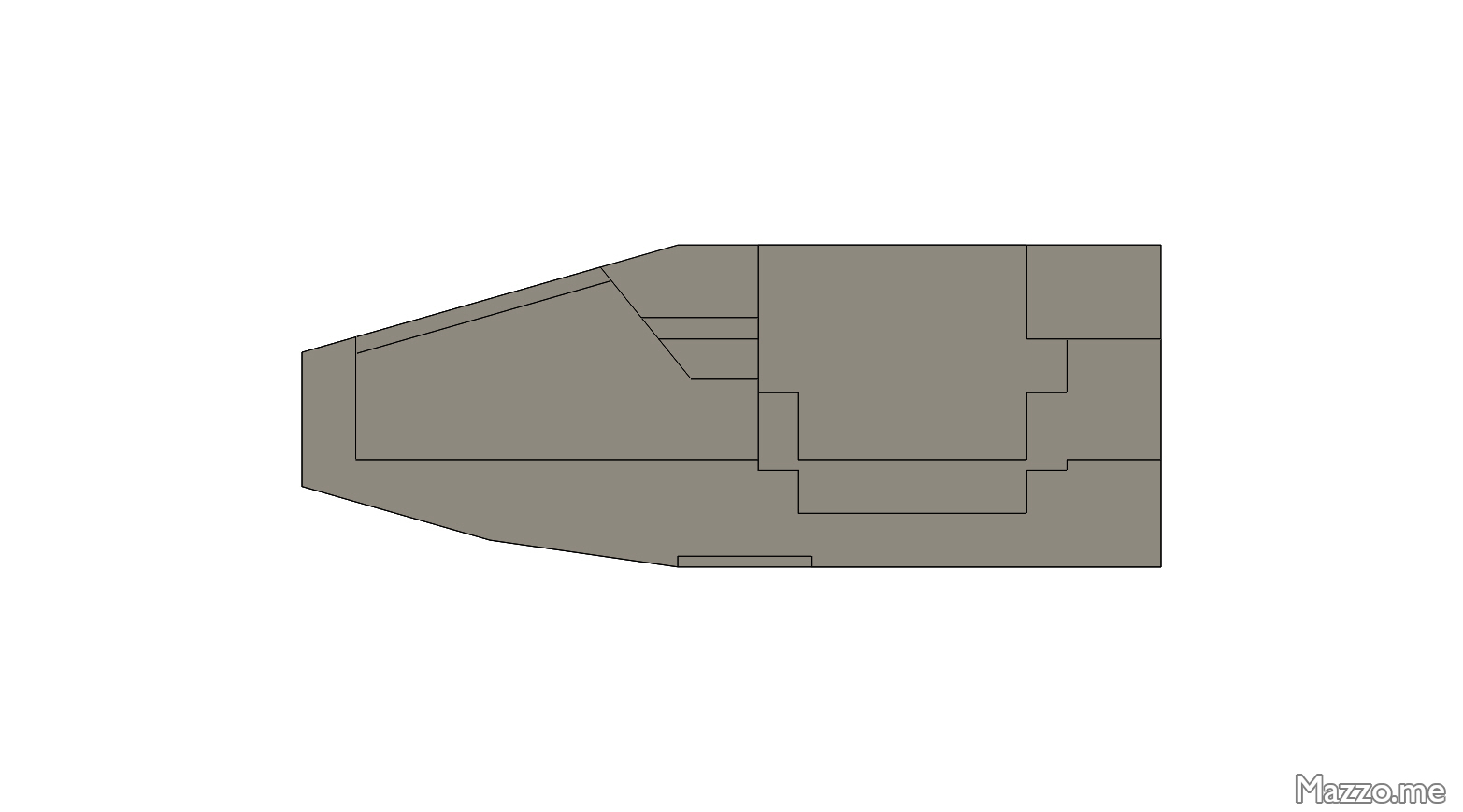

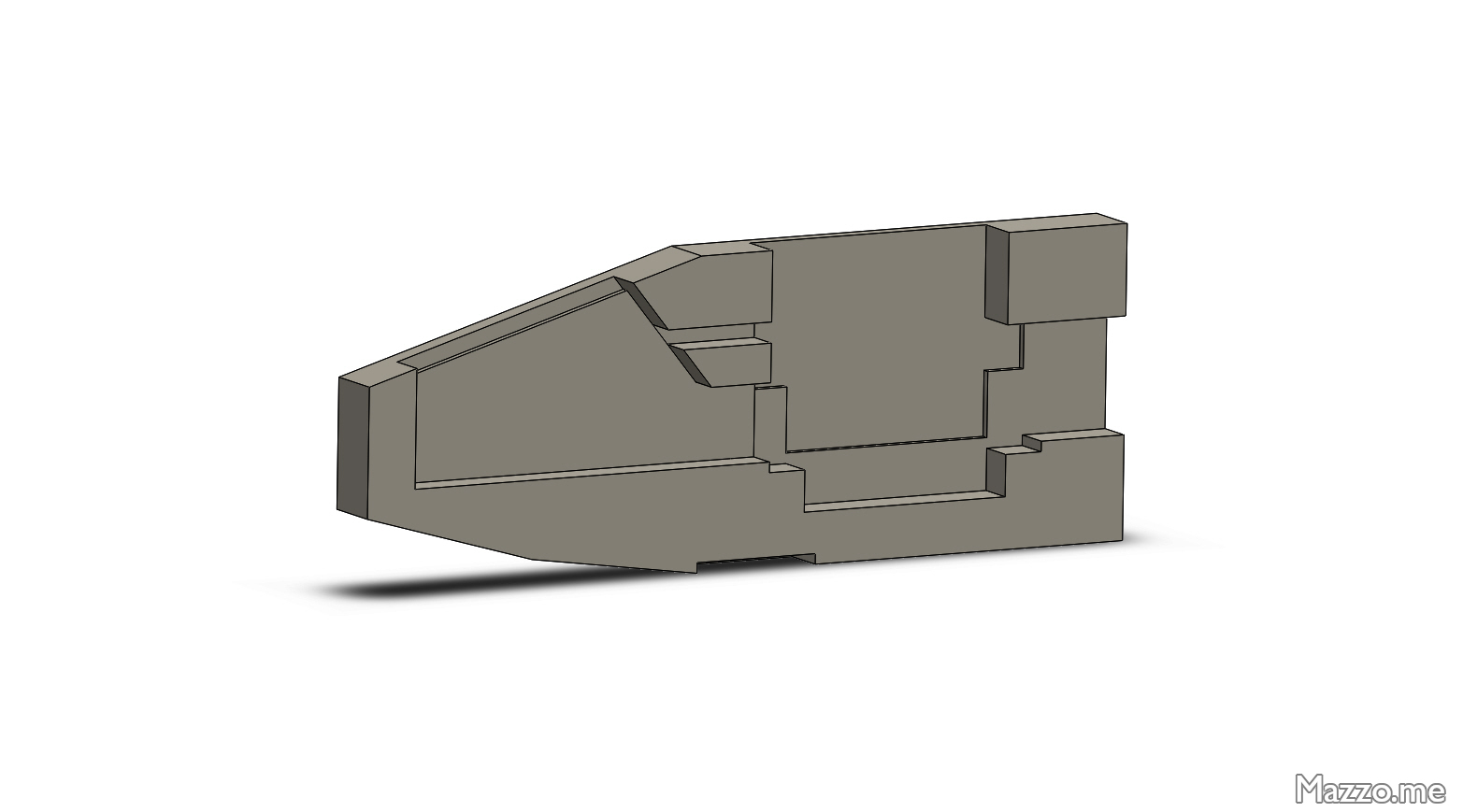

The internal structure of the fuselage is designed to accommodate the various components:

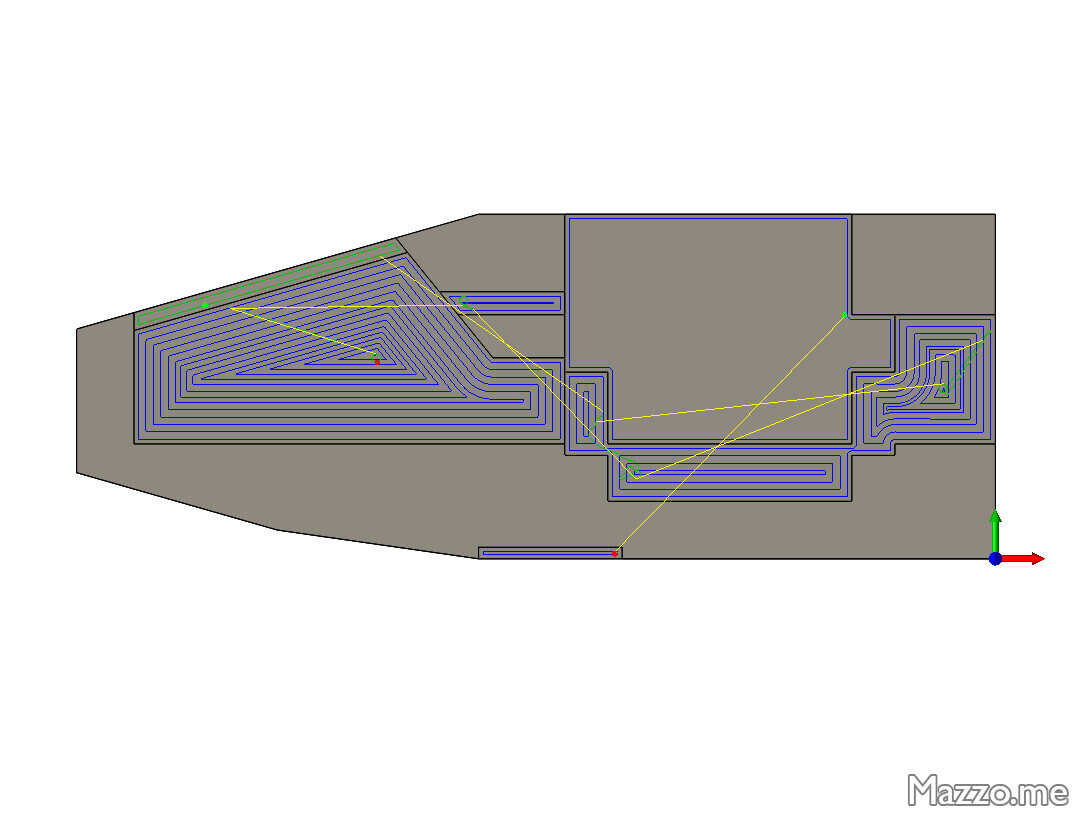

It was designed to be milled with my MPCNC in polystyrene:

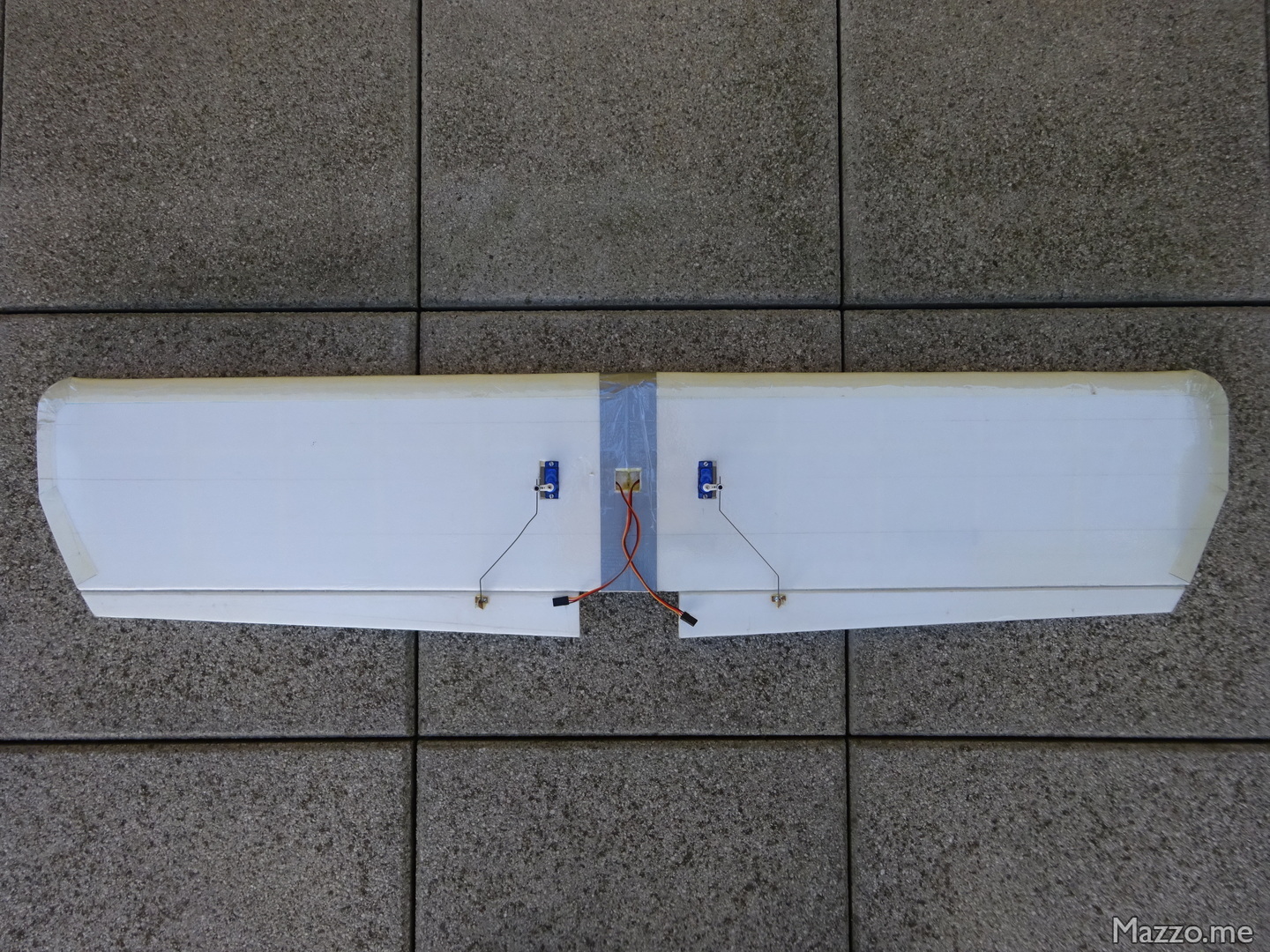

The wing has a spar structure:

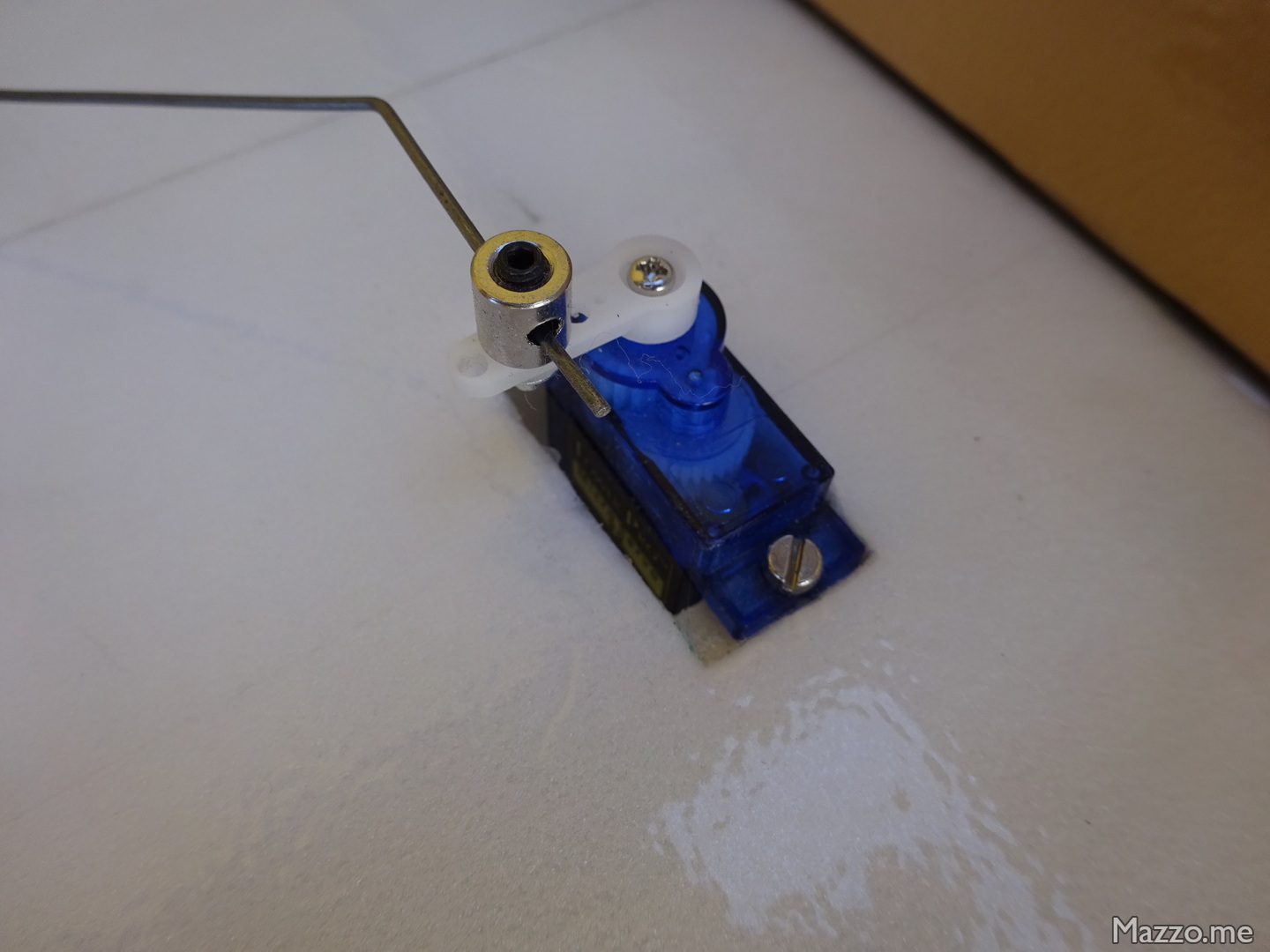

The ailerons are moved by small servomotors:

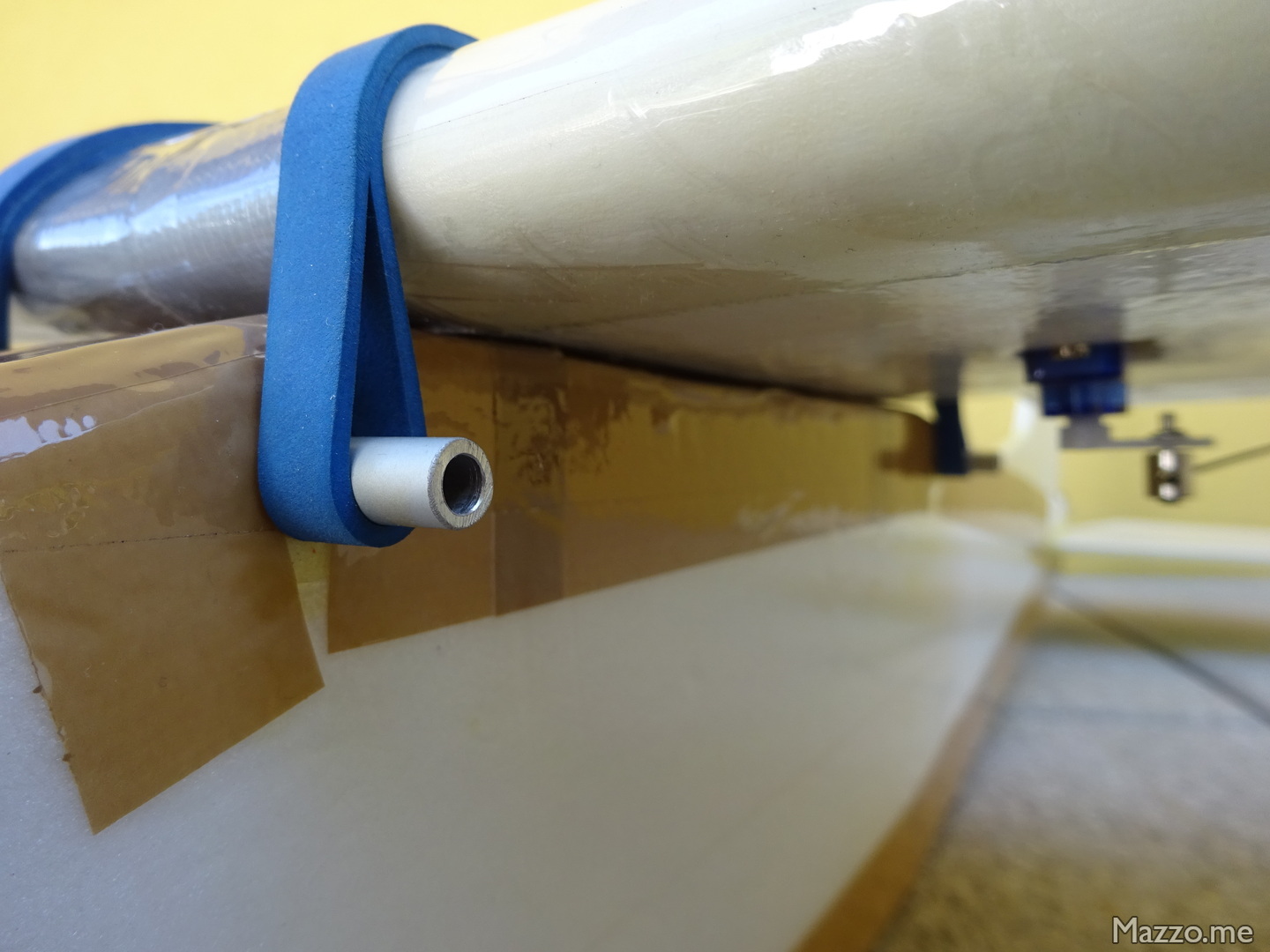

The wing is attached to the fuselage with two rubber bands:

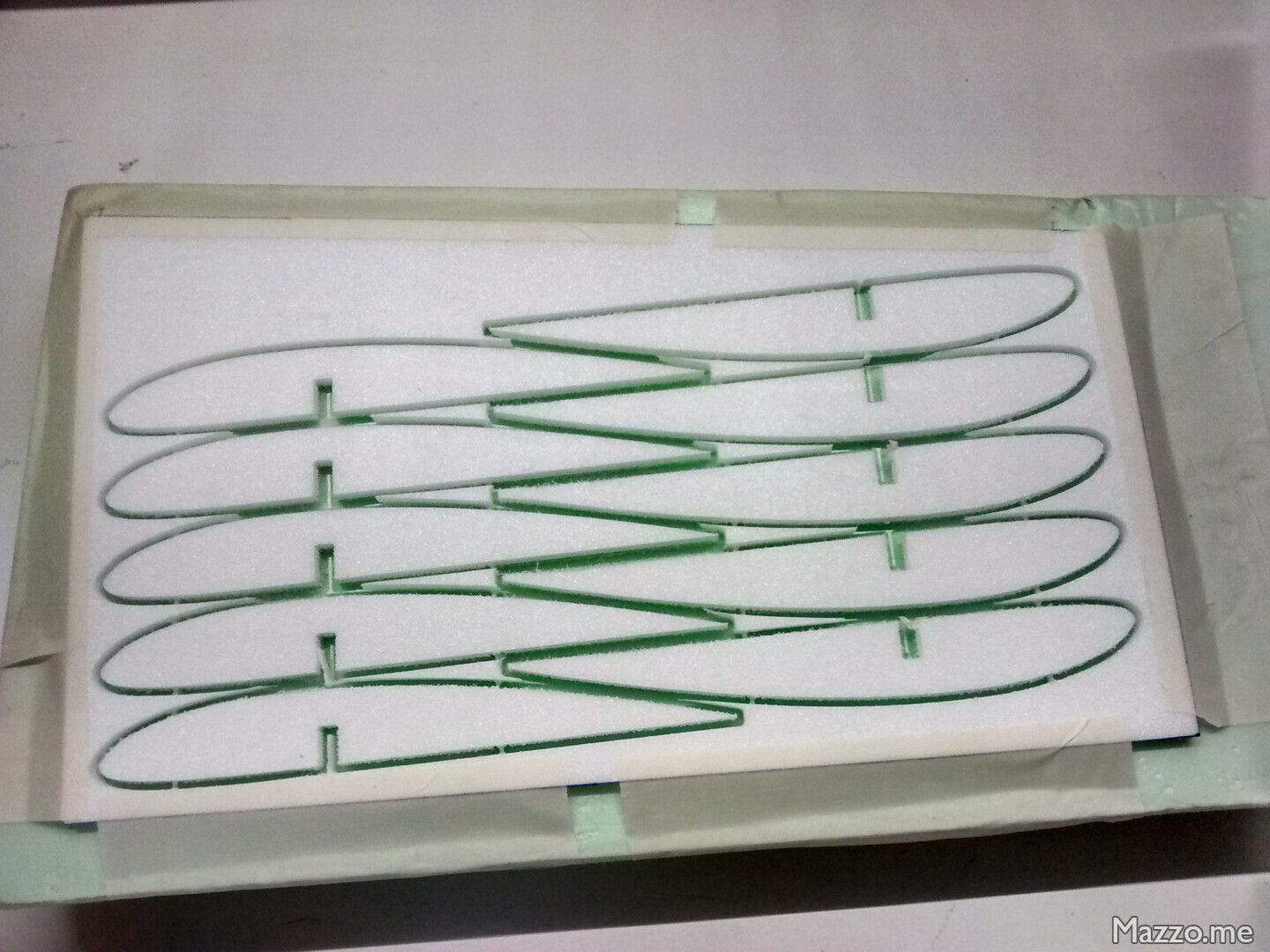

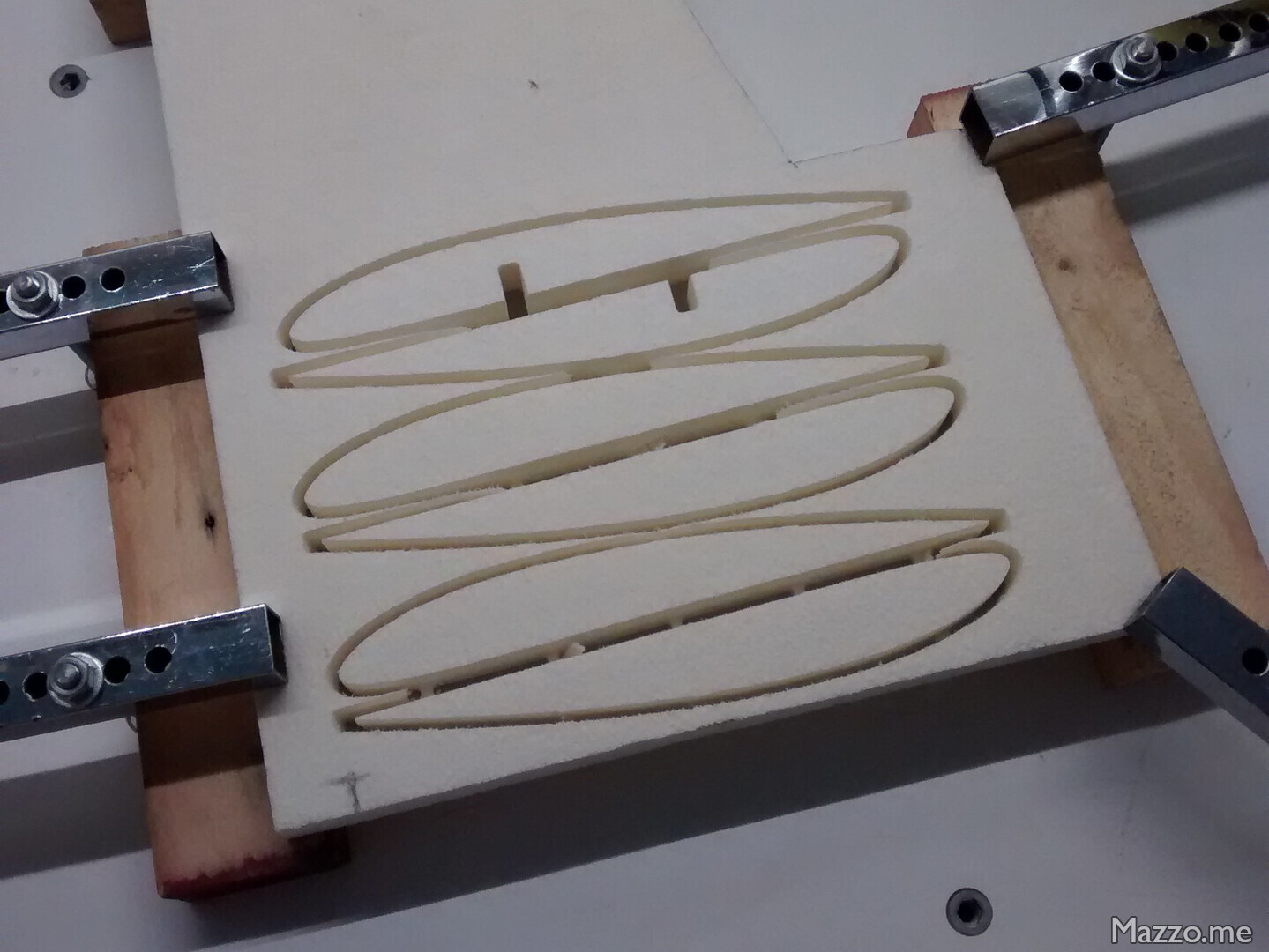

Even the spars of the wing have been milled with my MPCNC:

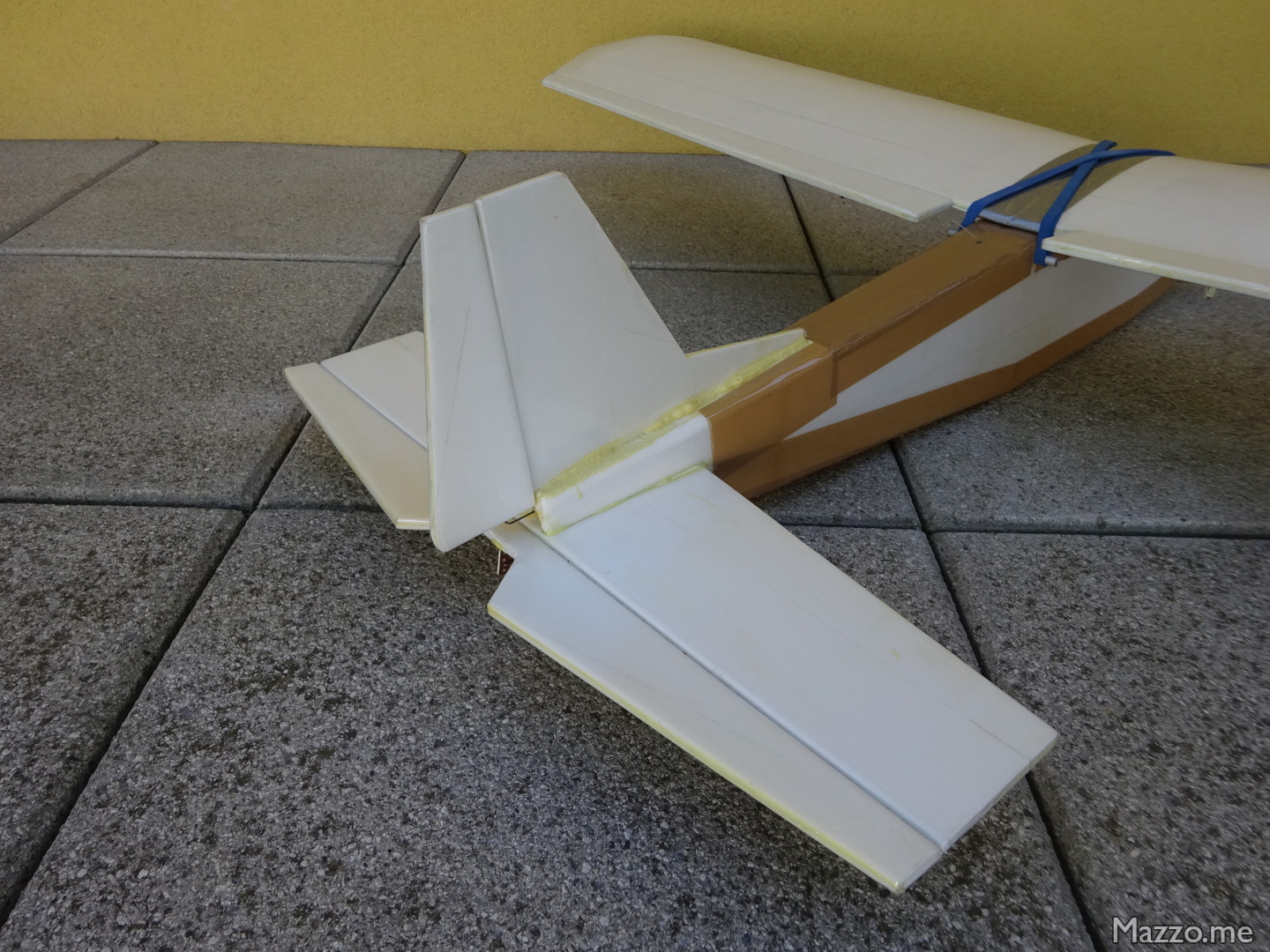

The moving surfaces of the tail are moved by two servos located in the electronic compartment:

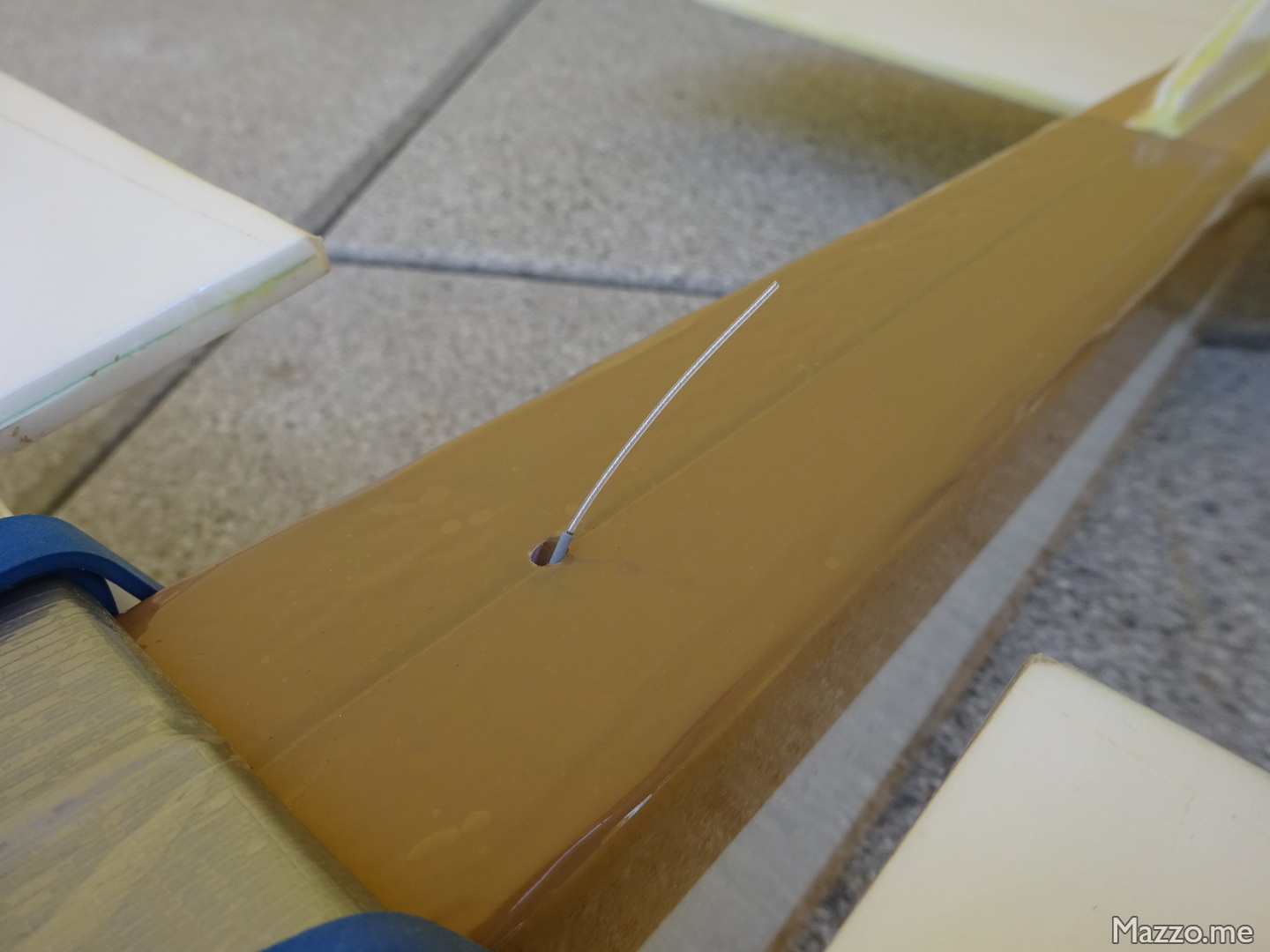

The receiver’s antenna is external:

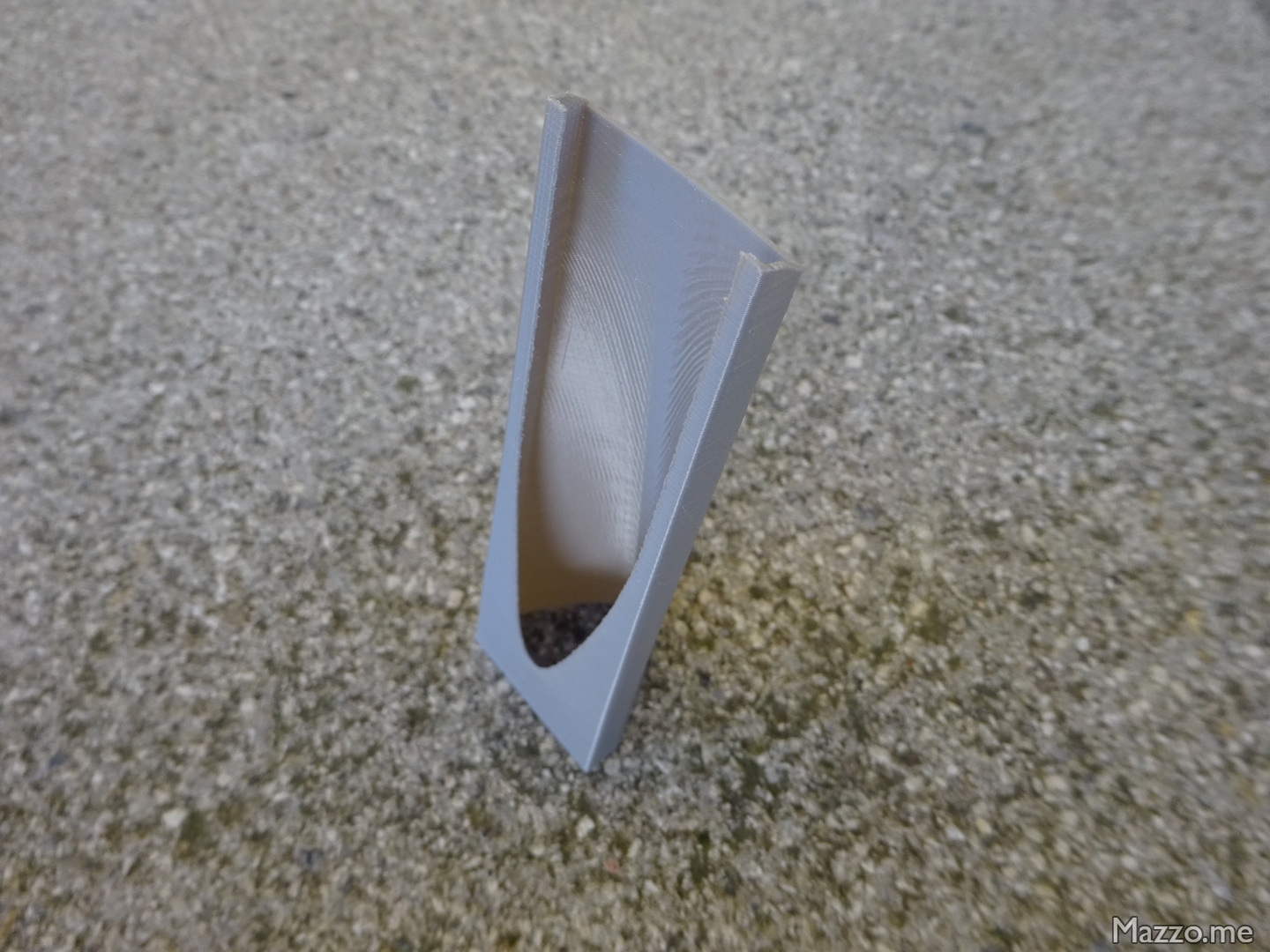

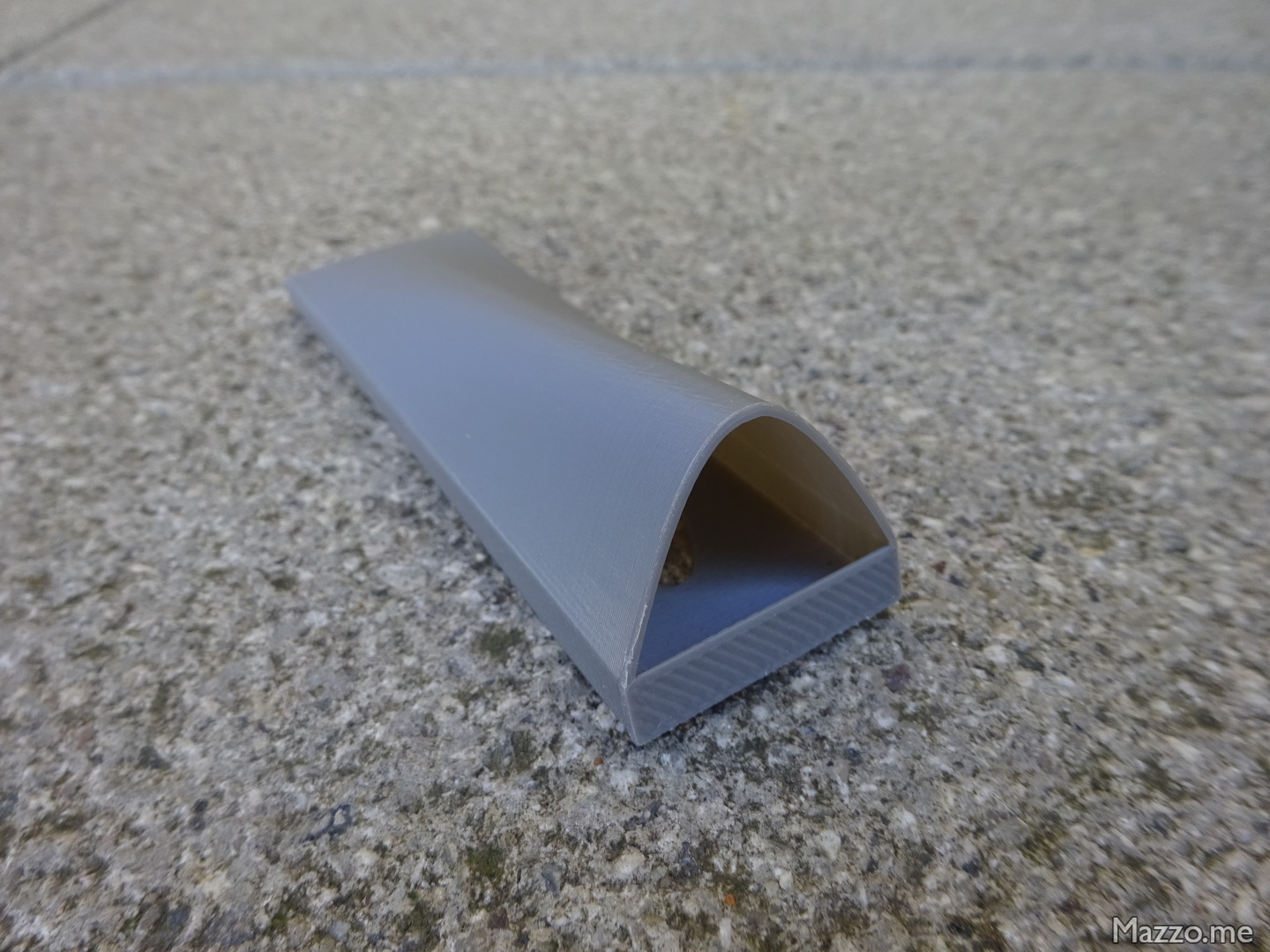

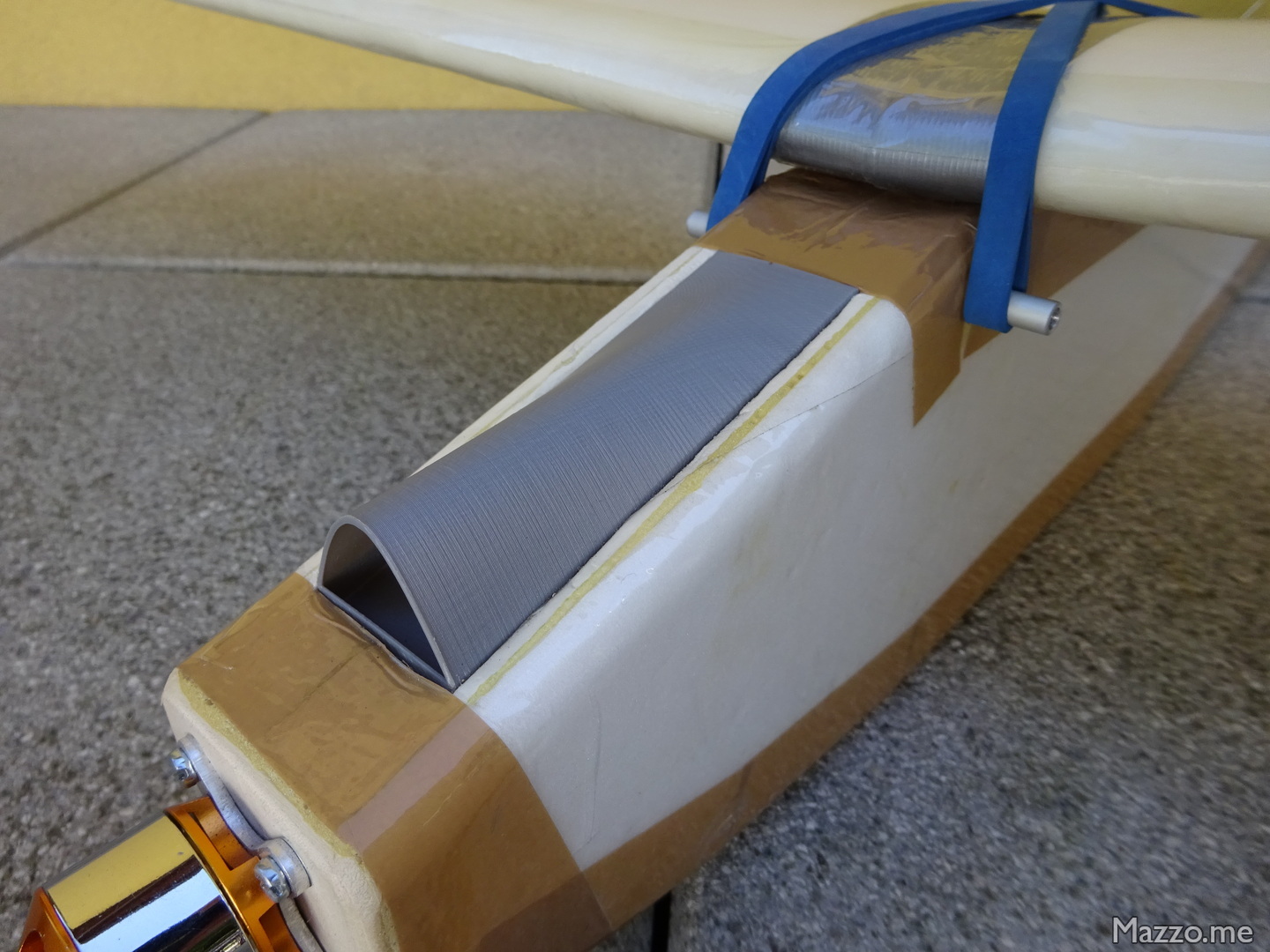

The battery compartment can be opened and is closed by a canopy made with my 3D Printer:

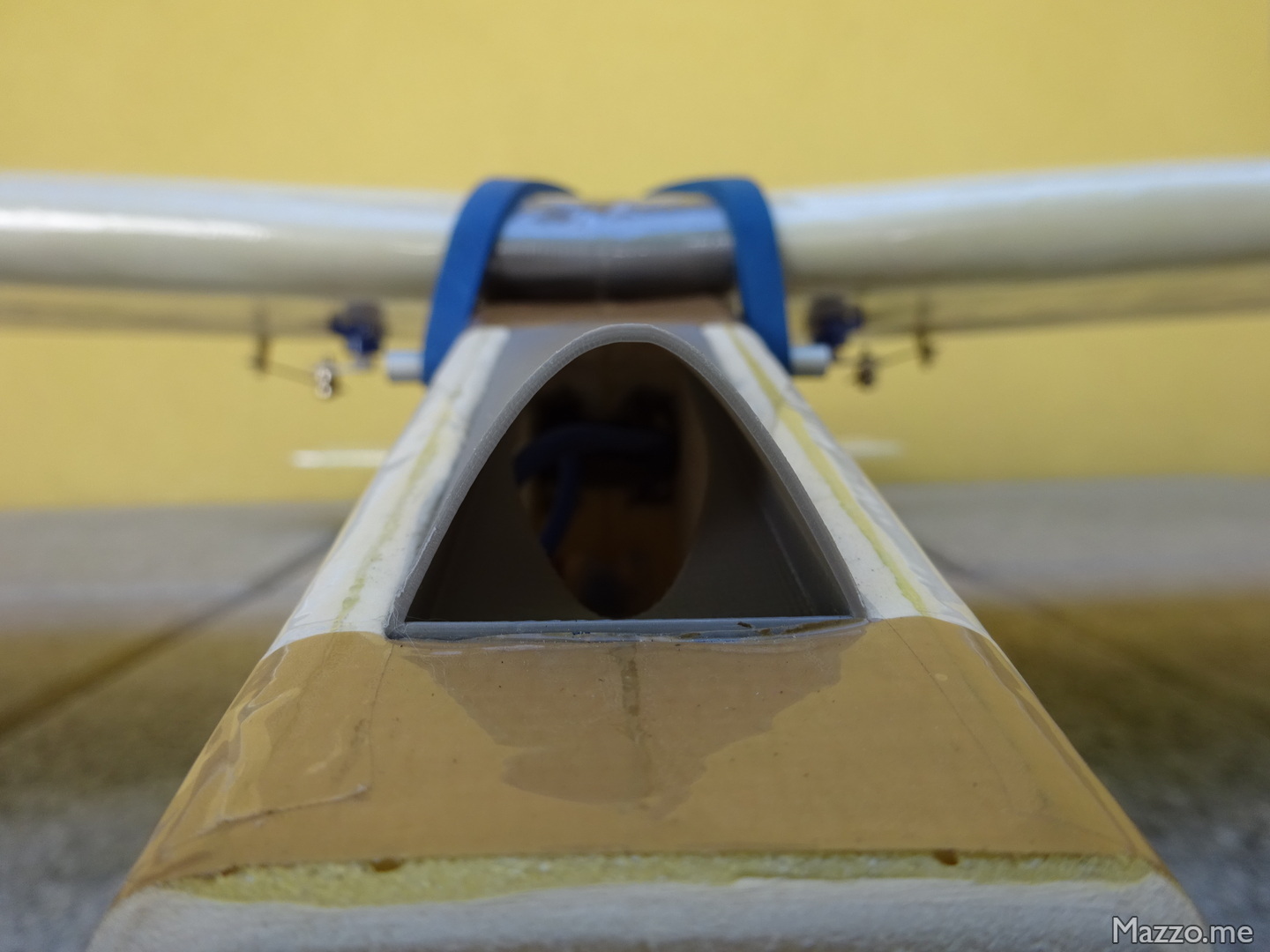

The canopy has an air intake that allows the electronics to be cooled:

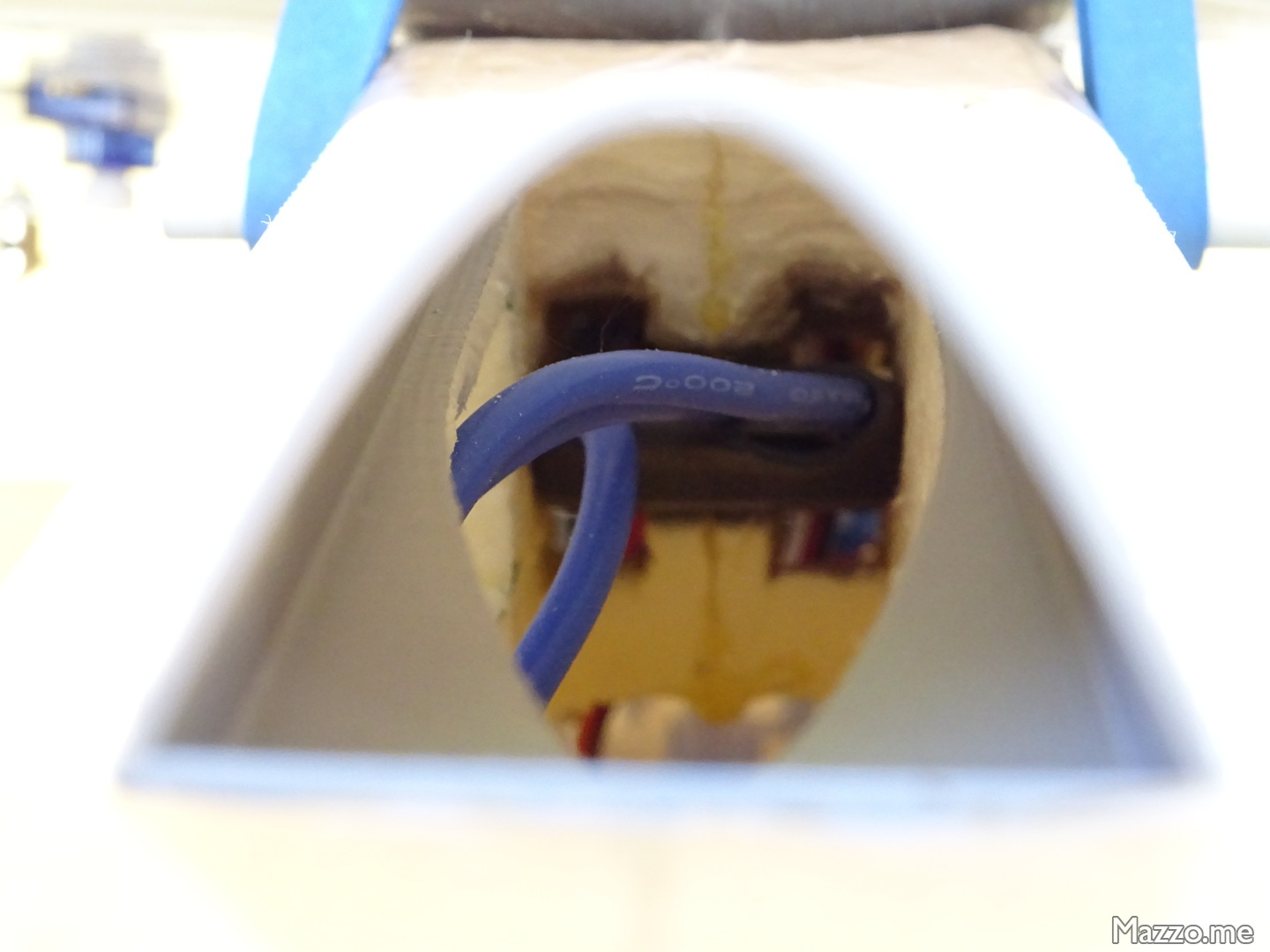

In particular the motor driver:

The canopy is printed in PLA:
